Bladder Tanks Main Solar Hot Water Tanks Sitemap Igeus

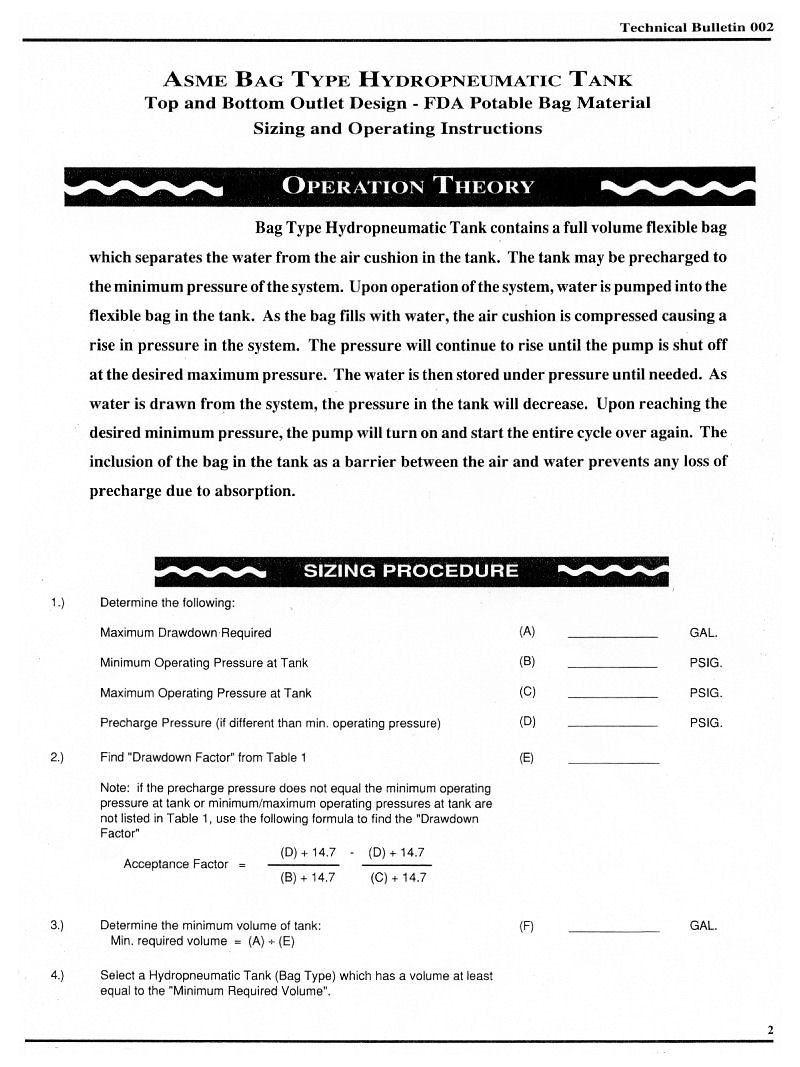

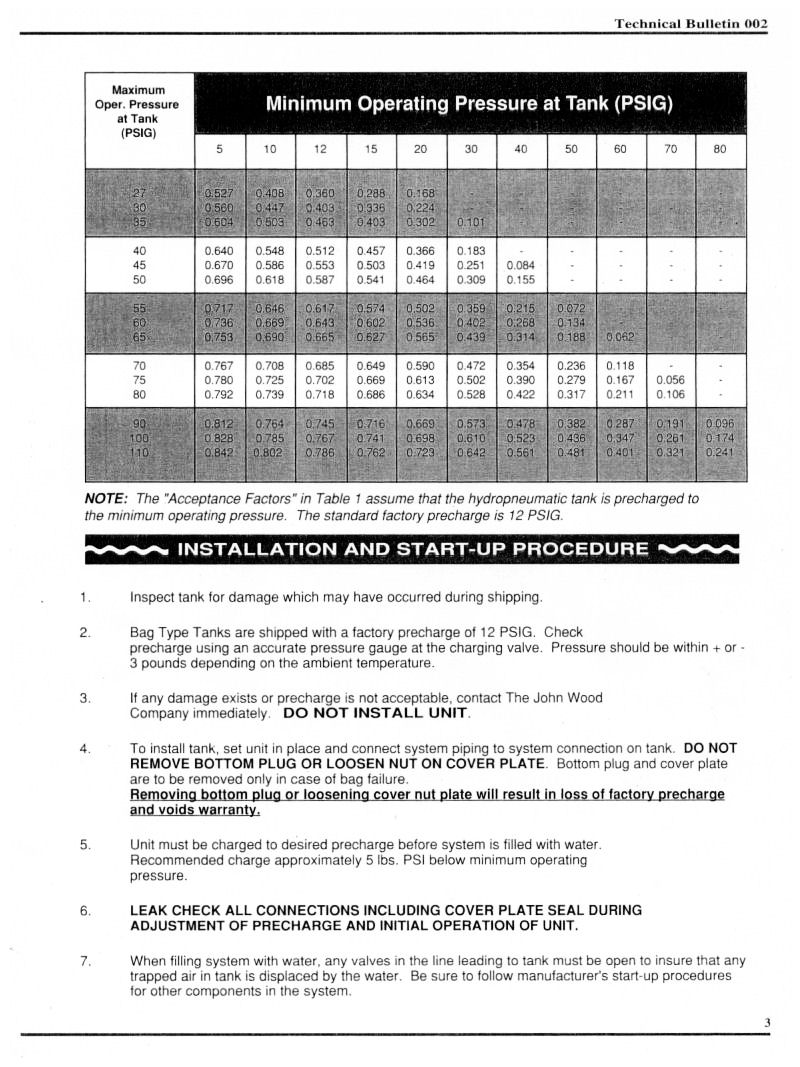

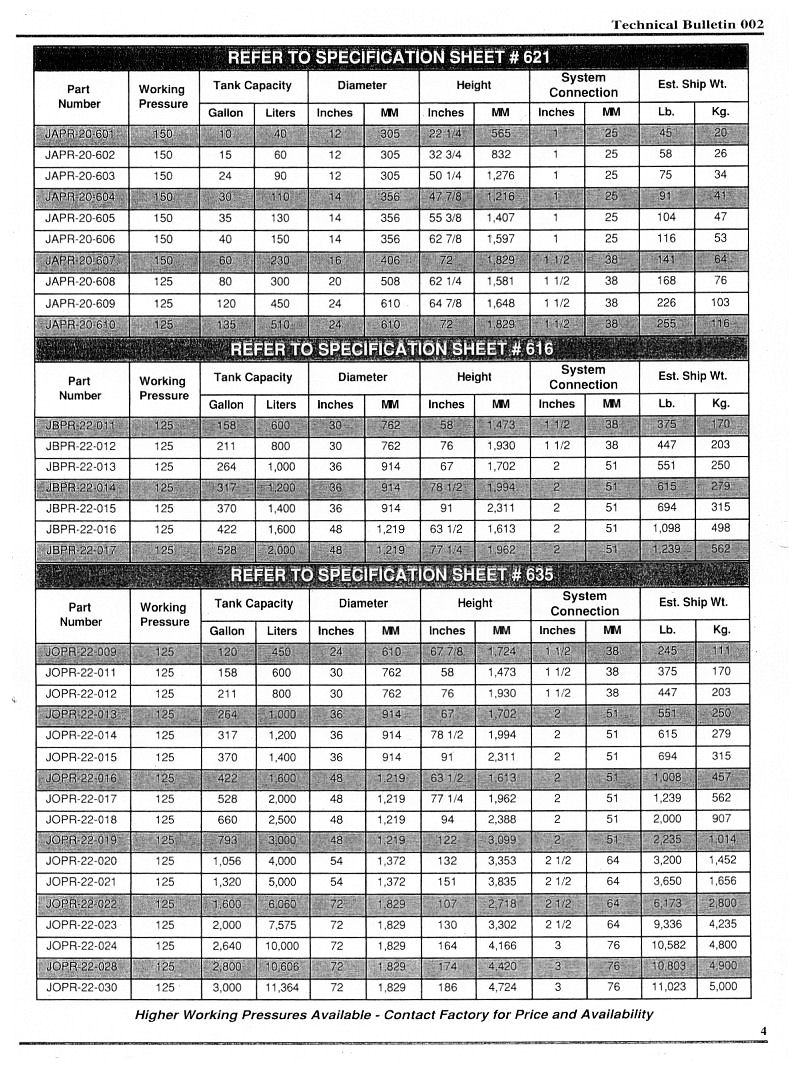

Technical Bulletin 002

Code certified Bag Type Hydropneumatic Tank
Top and Bottom Outlet Design
FDA Potable Bag Material Sizing and Operating Instruction

Specs and Prices
Potable Water Tanks
Well Pressure Tank (specs 616)
Well Water Pressure Tank (specs 621)
Well Tank (specs 635)
Diaphragm Pressure Tank (specs 645)
Non-Potable Water Tanks
Bladder Tank (specs 615)
Bladder Expansion Tank (specs 620)
Bladder Water Tanks (specs 636)
High Temperature Bladder Tanks
Bladder Pressure Tank (specs 699A)
Diaphragm Tank (specs 699B)
Installation and Specs
Installation for Bottom Outlet Bag Tank
Technical Bulletin TB001
Technical Bulletin TB002


Click on the icon to view and print large picture!

PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
PRICES LISTED ABOVE ARE SUBJECT TO ADDITION OF ANY TAX IMPOSED BY ANY PRESENT FEDERAL, STATE, COUNTY OR MUNICIPAL LAW.
PRICES SHOWN DO NOT CONSTITUTE A CONTRACT TO DELIVER AT THESE PRICES.
ERRORS AND OMMISSIONS EXCEPTED.
